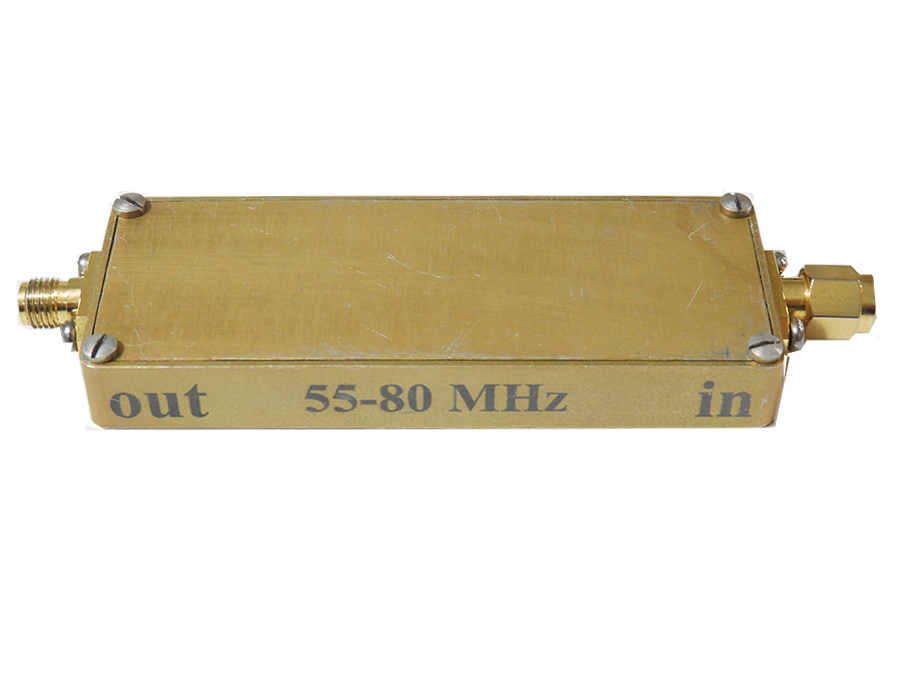

فیلتر RF پایین گذر (55MHz الی 80MHz)

YE-RFM02Z

  RF Filter Medium BW Frequency 55-80MHz

RF Filters YE-RFM02Z
RF Filters YE-RFM02Z RF Filters YE-RFM02Z RF Filters YE-RFM02Z
درباره محصول
توضیحات فنی
مشخصات دیگر

Maximum Input Power Level: +33 dBm

Operating Temperature: -10°C to 70°C

Storage Temperature: -40°C to 85°C

: Electrical Characteristics

Note

Unit

Max

Typ

Min

Item

-

MHz

-

67.5

-

Center frequency, Fc

-

dB

4

2.7

1.95

Insertion Loss, IL

-

MHz

-

17

-

3dB Bandwidth

-

dB

0.5

0.2

-

Amplitude ripple within Fc ± 1MHz

-

dB

-

71

70

 Attenuation (110-135MHz)

-

-

-

FR4

-

Substrate Material

-

°C

-

25

-

Ambient Temperature

-

ohm

-

50

-

Impedance

-

gram

-

47

-

Weight

SMA-Male

-

-

-

-

Input Connectors

SMA-Female

-

-

-

-

Output Connectors



: Frequency Characteristics

Pout vs Frequency (Pin=19.9dBm)





:Dimension

All Dimensions in mm [inches]





:Application

(Harmonic Rejection (HR

(Low Pass Filter 80MHz (-70dB@110MHz
