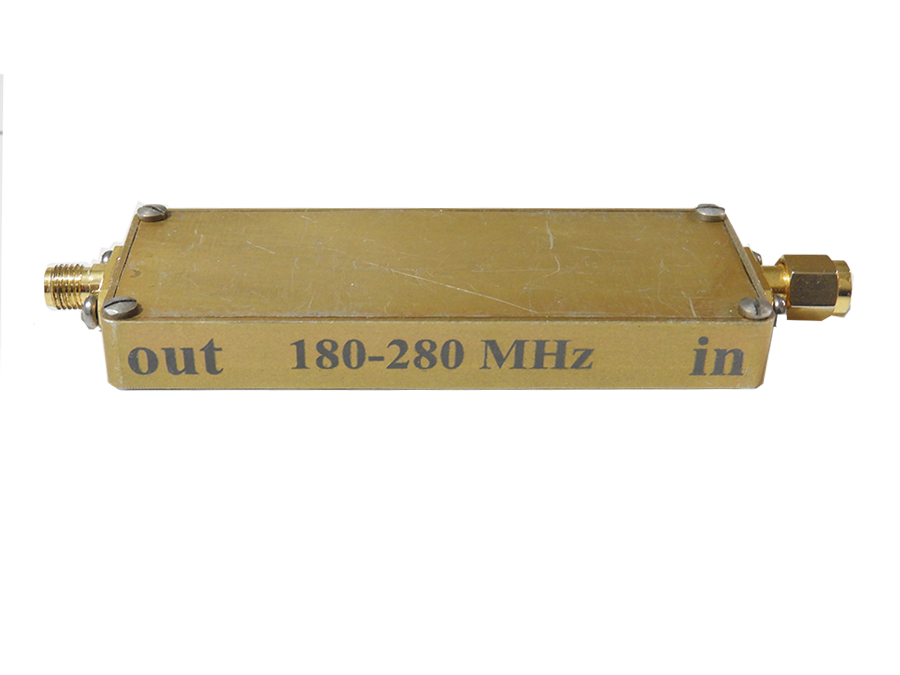

فیلتر RF پایین گذر (180MHz الی 280MHz)

YE-RFM10Z

 RF Filter Medium BW Frequency 180-280MHz

RF Filters YE-RFM10Z
RF Filters YE-RFM10Z RF Filters YE-RFM10Z RF Filters YE-RFM10Z
درباره محصول
توضیحات فنی
مشخصات دیگر

 Maximum Input Power Level: +33 dBm

Operating Temperature: -10°C to 70°C

Storage Temperature: -40°C to 85°C

: Electrical Characteristics

Note

Unit

Max

Typ

Min

Item

-

MHz

-

230

-

Center frequency, Fc

-

dB

3

1.3

0.74

Insertion Loss, IL

-

MHz

-

100

-

3dB Bandwidth

-

dB

0.6

0.2

-

Amplitude ripple within Fc ± 10MHz

-

dB

-

64

61

 Attenuation (380-580MHz)

-

-

-

FR4

-

Substrate Material

-

°C

-

25

-

Ambient Temperature

-

ohm

-

50

-

Impedance

-

gram

-

36

-

Weight

SMA-Male

-

-

-

-

Input Connectors

SMA-Female

-

-

-

-

Output Connectors



: Frequency Characteristics

Pout vs Frequency (Pin=0dBm)

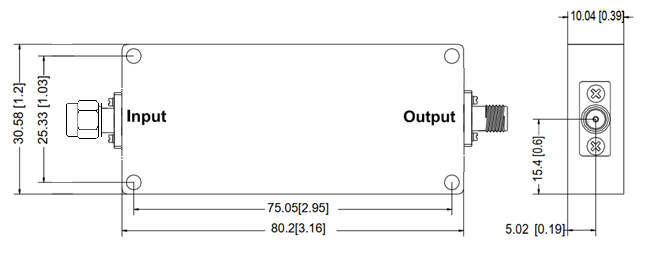

:Dimension

All Dimensions in mm [inches]







:Application

(Harmonic Rejection (HR

(Low Pass Filter 280MHz (-61dB@360MHz
