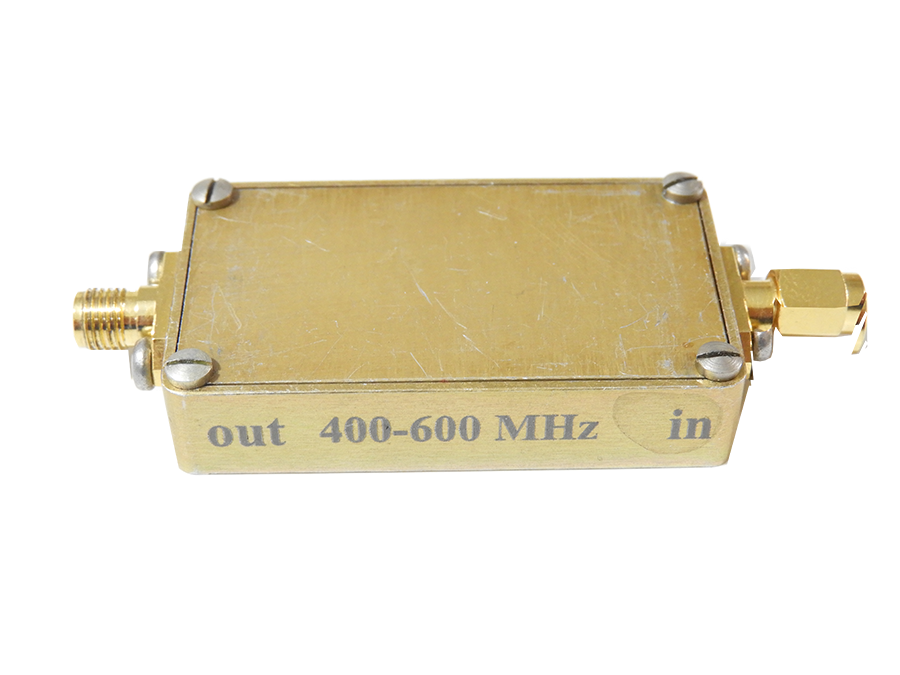

RF Filter Medium BW Frequency 400-600MHz
|
Note |
Unit |
Max |
Typ |
Min |
Item |
|
- |
MHz |
- |
500 |
- |
Center frequency, Fc |
|
- |
dB |
2.8 |
1.8 |
1.25 |
Insertion Loss, IL |
|
- |
MHz |
- |
200 |
- |
3dB Bandwidth |
|
- |
dB |
0.5 |
0.1 |
- |
Amplitude ripple within Fc ± 20MHz |
|
- |
dB |
- |
55 |
47 |
Attenuation (800-1300MHz) |
|
- |
- |
- |
FR4 |
- |
Substrate Material |
|
- |
°C |
- |
25 |
- |
Ambient Temperature |
|
- |
ohm |
- |
50 |
- |
Impedance |
|
- |
|
gram |
36 |
- |
Weight |
|
SMA-Male |
- |
- |
- |
- |
Input Connectors |
|
SMA-Female |
- |
- |
- |
- |
Output Connectors |
|
|
|
Pout vs Frequency (Pin=0dBm) |
|
|
All Dimensions in mm [inches]
(Low Pass Filter 600MHz (-46dB@76MHz
